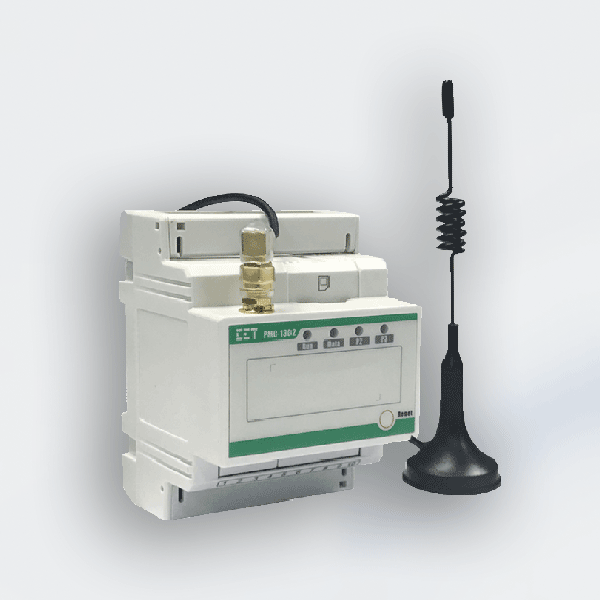

The PMC-1302-3 ESG is an Ethernet Serial/LoRa Gateway which provides one 10/100BaseT Ethernet port, two RS-485 ports and an optional wireless LoRa port with AS923 band. It is the ideal equipment for connecting RS-485 and optionally LoRa enabled devices to an IP-based Ethernet LAN, making it possible to access serial and optionally LoRa devices over your Ethernet network for any SCADA or Automation applications. The PMC-1302-3 ESG has been specifically designed with industrial automation in mind and therefore provides un-surpassed performance and reliability under the harshest industrial or commercial environments.
- Product Details
- Parameter
Standard of Compliance
| Safety Requirements | ||
| Insulation | EN 61010-1: 2010
EN 61010-2-030: 2010 |
|
| Dielectric Test | 2kV @ 1 minute | |
| Insulation Resistance | >100MΩ | |
| Impulse Voltage | 5kV, 1.2/50µs | |
Electromagnetic Compatibility
CE EMC Directive 2014/30/EU (EN 61326: 2013)
| Immunity Tests | ||
| Electrostatic Discharge | EN 61000-4-2: 2009 | |
| Radiated Fields | EN 61000-4-3: 2006+A1:
2008+A2: 2010 |
|
| Fast Transients | EN 61000-4-4: 2012 | |
| Surges | EN 61000‐4‐5: 2014+A1: 2017 | |
| Conducted Disturbances | EN 61000‐4‐6: 2014 | |
| Magnetic Fields | EN 61000‐4‐8: 2010 | |
| Voltage Dips and Interruptions | EN 61000-4-11: 2004+A1: 2017 | |
